The Standard Air Dome of Broadwell Air Dome

Views: 1553 Author: Site Editor Publish Time: Origin: Site

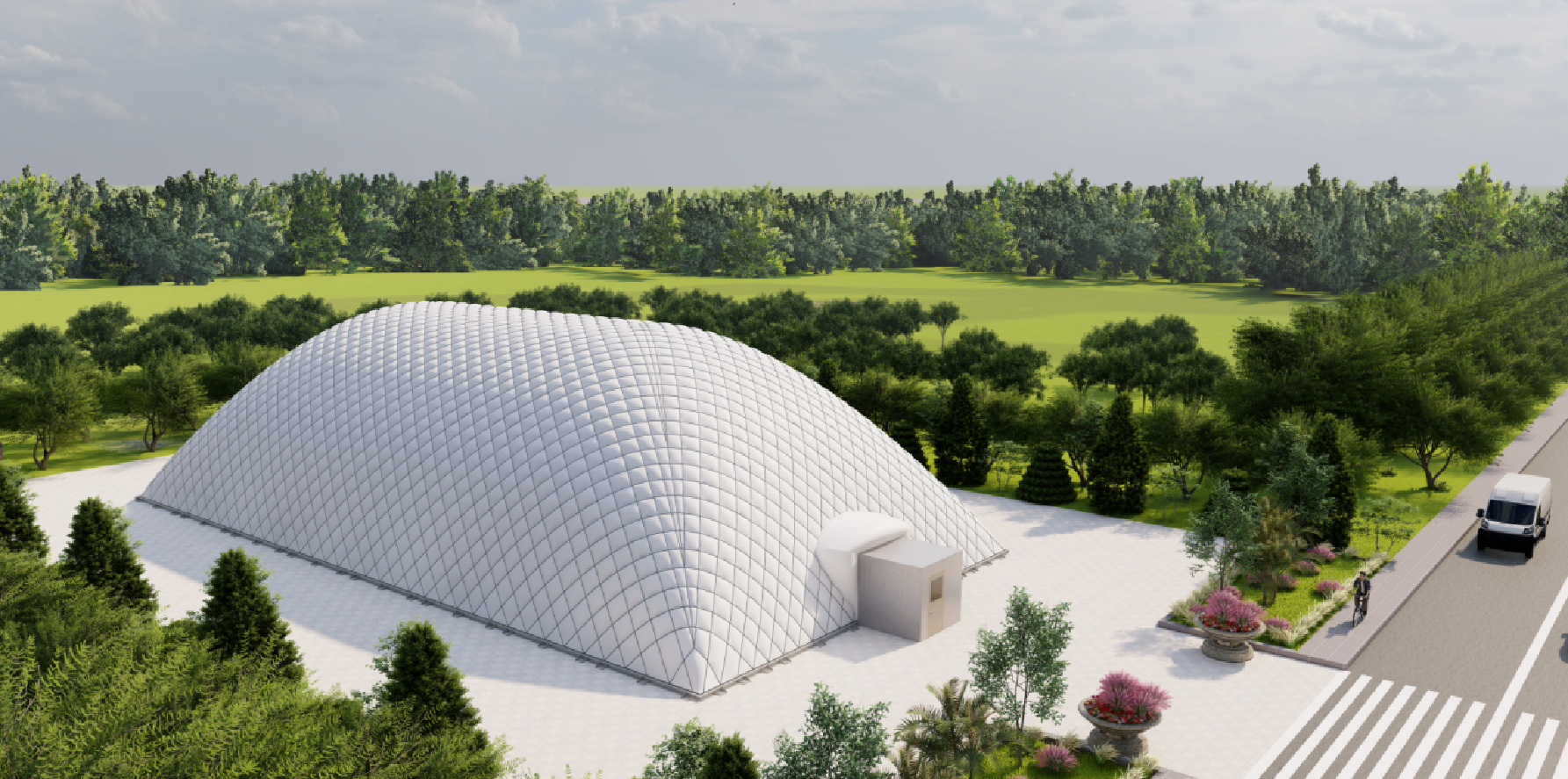

This type of air dome stadium will be able to complete installation in a month with a cozy environment, including heat retention, wind-proof, and snow-proof.





Five Component Systems on  Broadwell Air Dome, which have made our Air Dome Structure Strong.


The Infrastructure System;Membrane Material; Steel Cable Harness System; Access Control System, and Electrical System, our membrane adopts PVDF Type of material.



Warranty period is up to 15 years; our Steel Cable is coated with Zinc, which is able to prevent corrosion process since this part will always be exposed to air.



It is coated with Zinc and also wrapped with PE material. For our electrical system, we adopt universal high-quality Air Blowers, which will ensure that there will always be fresh air transferred to the inner side of the Air Dome structure.



It is extremely freezing in winter in the Northern Region, outdoor activities are not able to be carried on regularly due to extremely low temperatures. Therefore, Broadwell has released new Standard Air Dome stadiums.  This stadium is exclusively designed for winter seasons in the  Northern Region. This type of structure can be quickly installed, which will create a warm and cozy environment for people to exercise. This structure consumes lower energy, security level is high during winter. Air Dome structure satisfies the demand for sports stadiums during winter, especially in the Northern Region.





These 3 Types of Air Domes are considered to be the Standard Air Dome Stadium :

Basketball Air Dome Stadiums (Standard Stadium)
Badminton Air Dome Stadium  (Standard Stadium)
Tennis Air Dome Stadiums     (Standard Stadium)

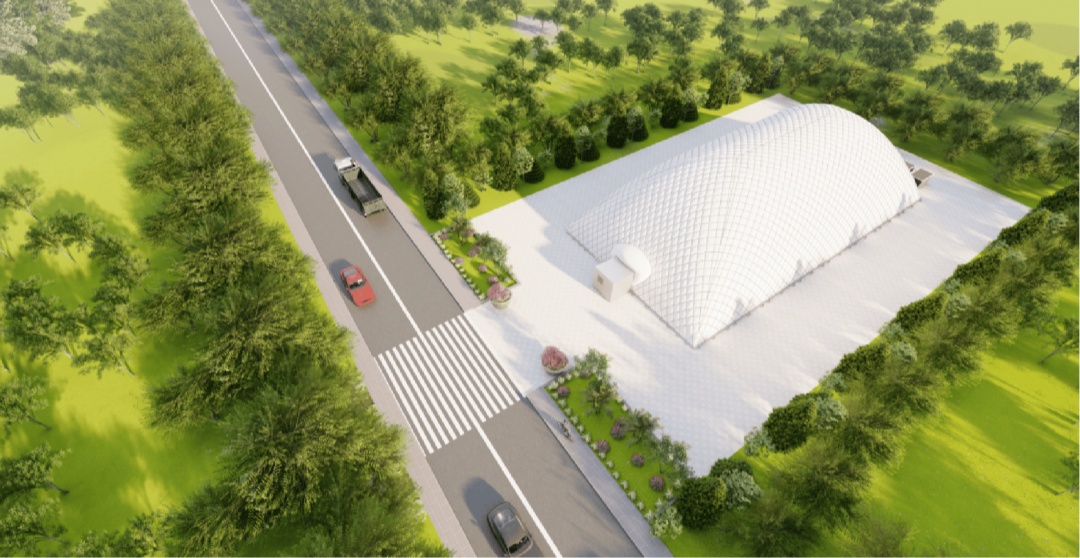

The Size of the Standard Air Dome Stadium: 36 m x 18 m x 9 m: 648㎡





Broadwell provides three different types of Anchoring solutions (Expansion Bolts,



Ground Pile Scheme, Ground Anchoring)



The membrane material that we used for the standard Air Dome stadium is a single layer of PVDF membrane material, which is exclusively used for air-inflated structures. The warranty period is up to 15 years.



Broadwell Patent Bias Cable Harness System





Evenly distributes both internal uplift force and external force to the anchorage system, reducing the force on the membrane, which provides optimal structural stability. It can resist the attack of wind and blizzard, extending the service life of the building;   Withstand 67m/s hurricanes (level 16 typhoon) and more than 250kg/sqm of snow;



When Strong winds sweep across the region, the displacement of Broadwell Air Dome is less than 10cm, while the displacement of other types of Air Domes is more than 2m, which is dangerous. Our Bias Harness Cable Net System is the key technique of Air Dome in the areas like South-east Asia and the Middle East, where the temperature difference is huge, without the protection of Bias Harness Cable Net System, the strength of the fabric welding seam will be reduced quickly (the strength of the welding seam will reduce more

than 70% when the temperature is above 40℃), which makes the welding seam more easily to cracking, the service life of Air Dome will be reduced as well.



Strong Galvanized Steel Wire Rope Strengthened, which enables Air Dome to withstand Heavy Snow and Strong Wind.





Benefits:



Standard Broadwell Air Dome will lower energy consumption, This structure has a high security level due to reinforcement of Cable Harness Systems.



Electrical System:



Broadwell Air Dome uses 0.75 KW Universal Air Blowers, an Outdoor Electricity Generator, Main Control panel with a smart system.



Access System:



Broadwell adopts the Air Lock channel, Emergency Doors.



The base foundation for Air Domes is easy to set up. Broadwell Air Domes can be built within a month.



Various Anchoring Proposals will secure the Air Dome structure.



Broadwell Air Dome meets different demands

It uses Universal Air Blower, Lower Consumption, Higher Security Level



PVDF Membrane has great thermal insulation features & dust-proof features, which make the inner space comfortable and do not require too much care for cleaning the membrane material.
